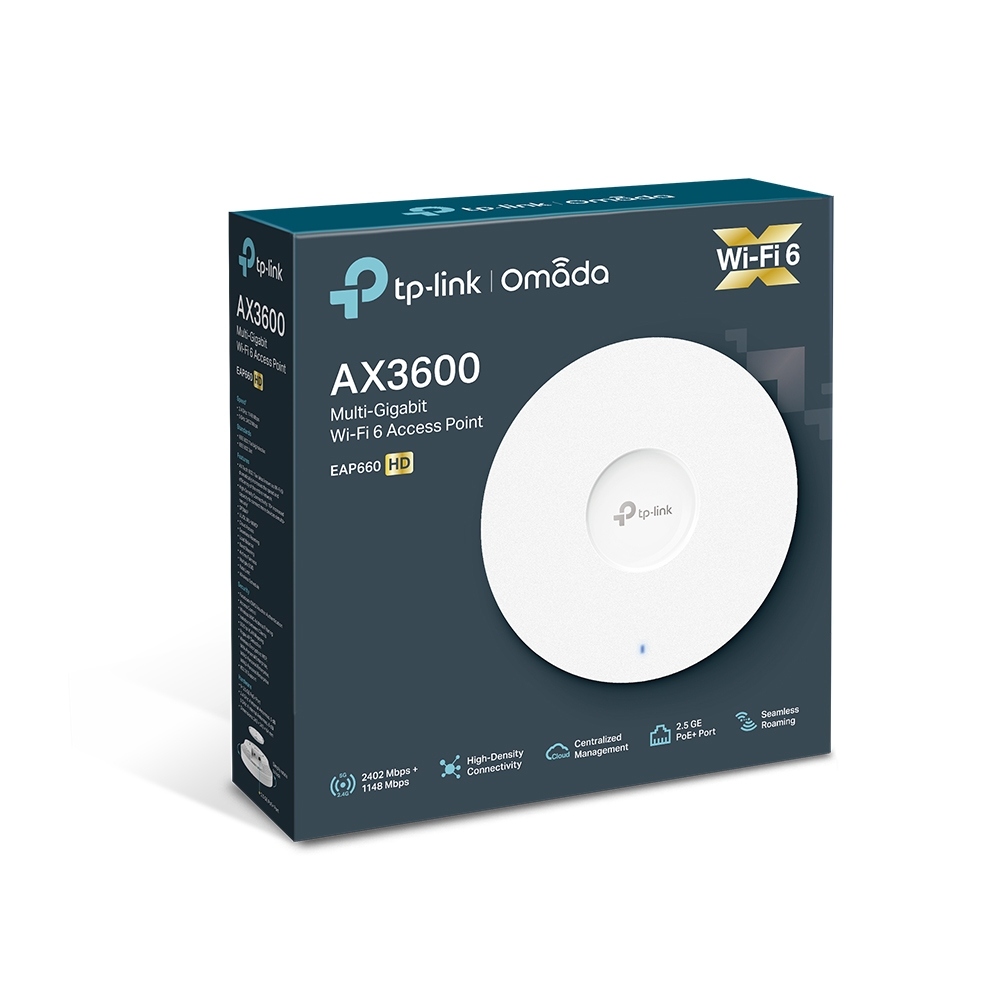

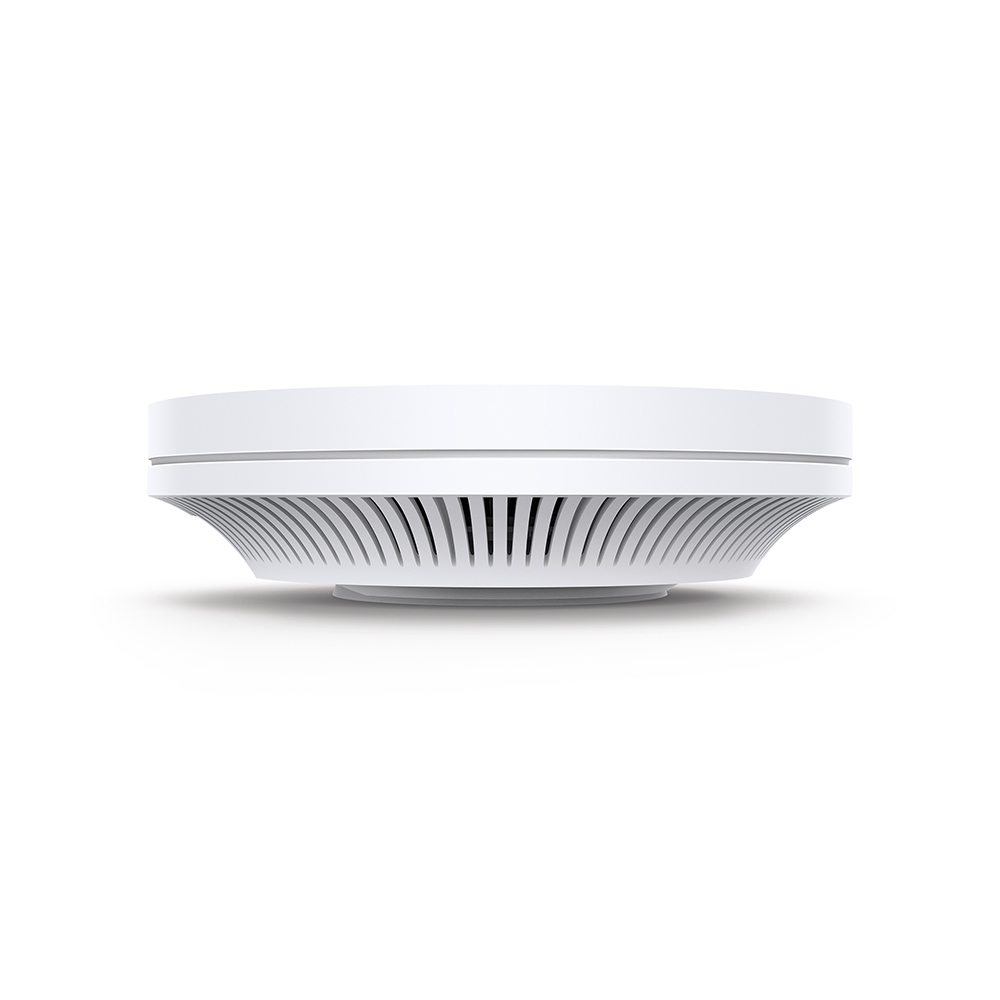

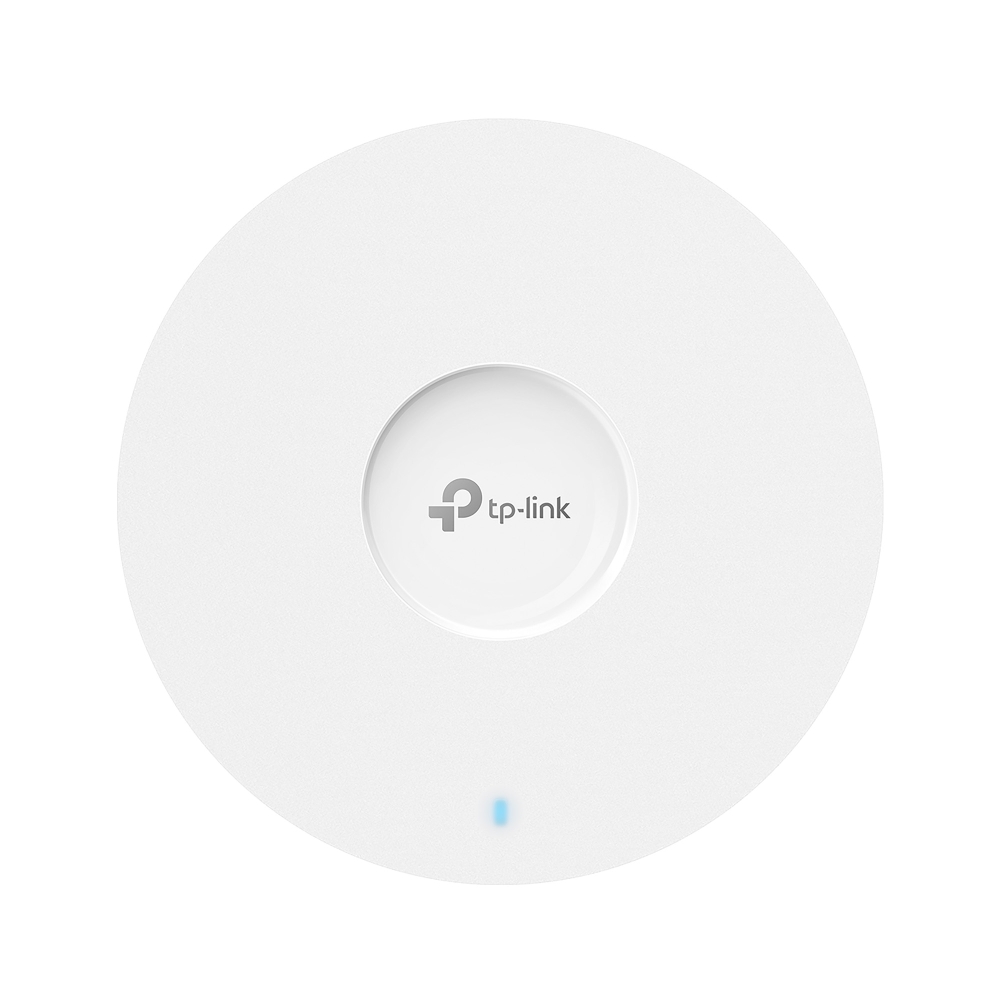

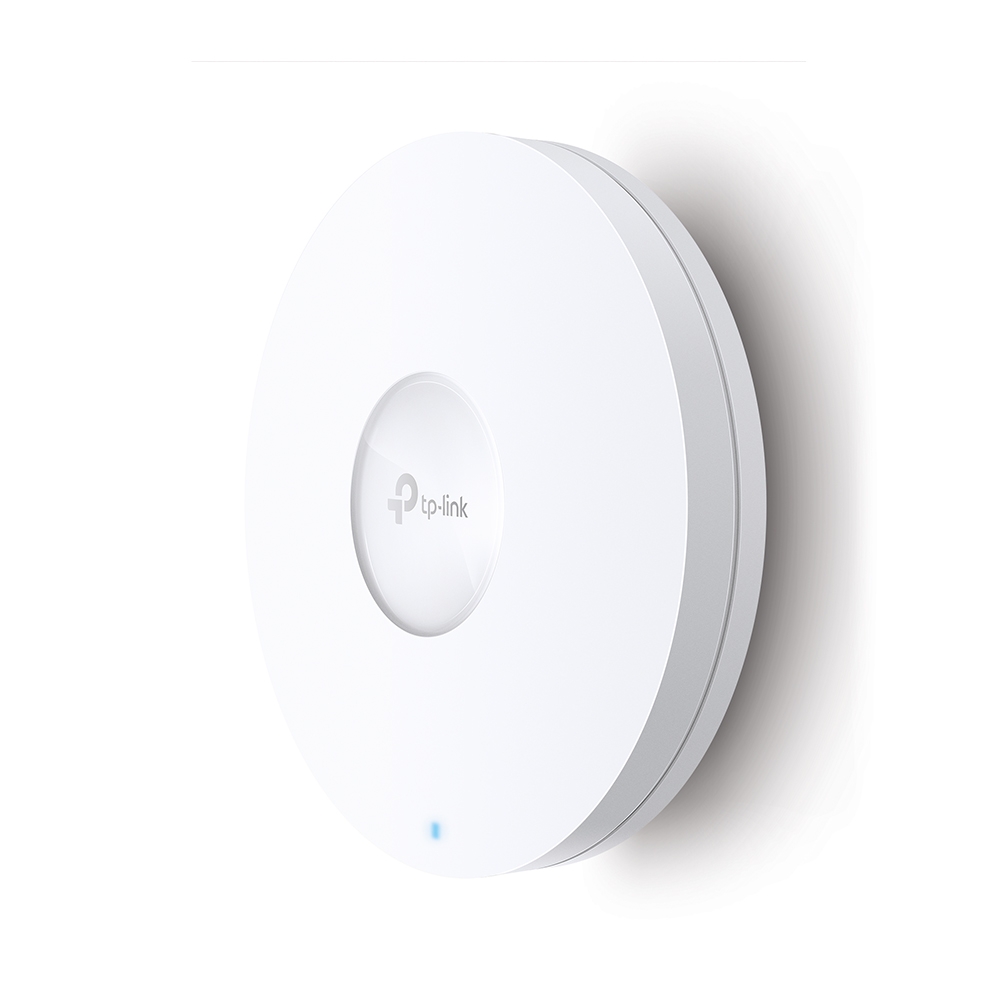

TP-LINK EAP660 HD AX3600 WIRELESS DUAL BAND MULTI-GIGABIT CEILING MOUNT ACCESS POINT

FEATURES :

- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†

- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡

- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.

- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

- 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.

- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△

- PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.

- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

HARDWARE FEATURES

Interface : 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)

Button : Reset

Power Supply :

• 802.3at PoE

• 12 V DC

Power Consumption :

• EU: 18.5 W

• US: 21.5 W

Dimensions ( W x D x H ) : 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

Antenna Type :

Internal Omni

• 2.4 GHz: 4× 4 dBi

• 5 GHz: 4× 5 dBi

Mounting : Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Client Capacity : 1,000+***

Wireless Standards : IEEE 802.11ax/ac/n/g/b/a

Frequency : 2.4 GHz and 5 GHz

Signal Rate :

• 5 GHz: Up to 2402 Mbps

• 2.4 GHz: Up to 1148 Mbps

Package Contents :

• EAP660 HD

• Power Adapter

• Ceiling/Wall Mounting Kits

• Installation Guide

System Requirements : Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment :

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

BARANG ORI & GARANSI RESMI (TIDAK CACAT FISIK / TERBAKAR)

GARANSI HANYA UNIT ONLY
