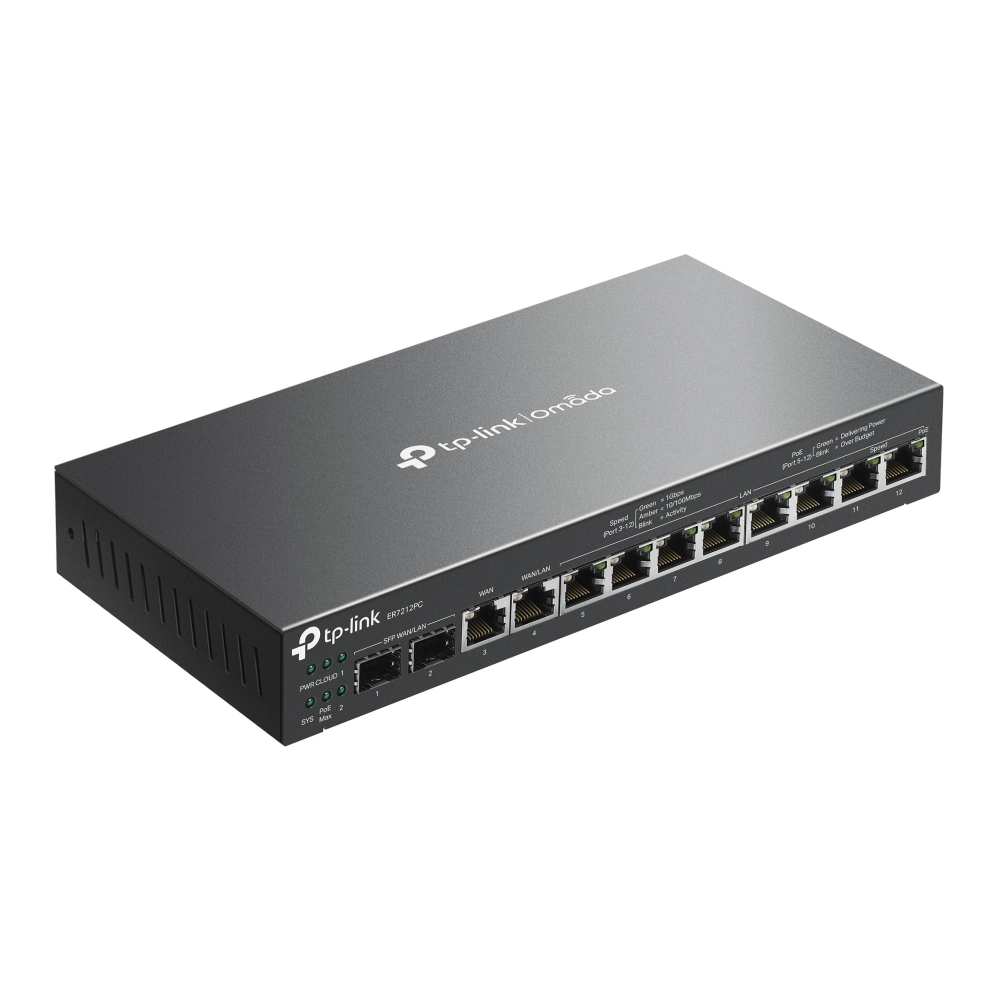

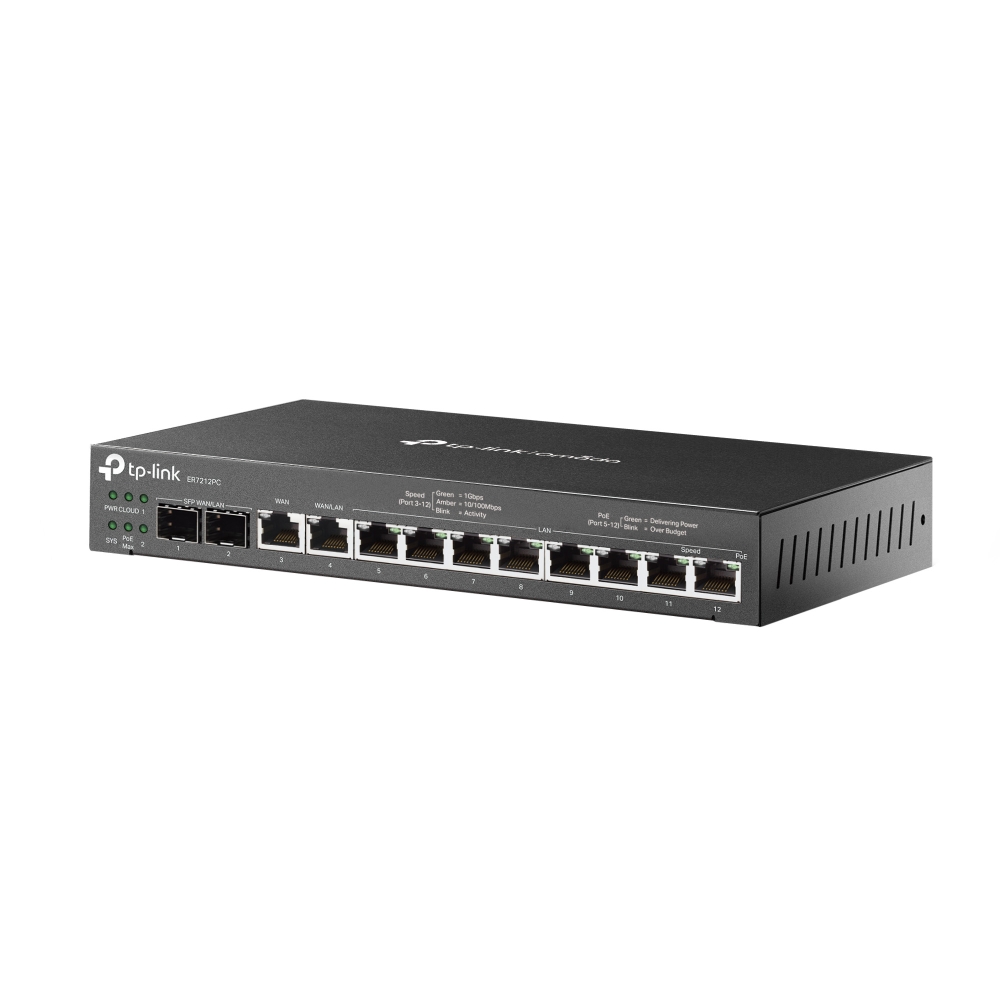

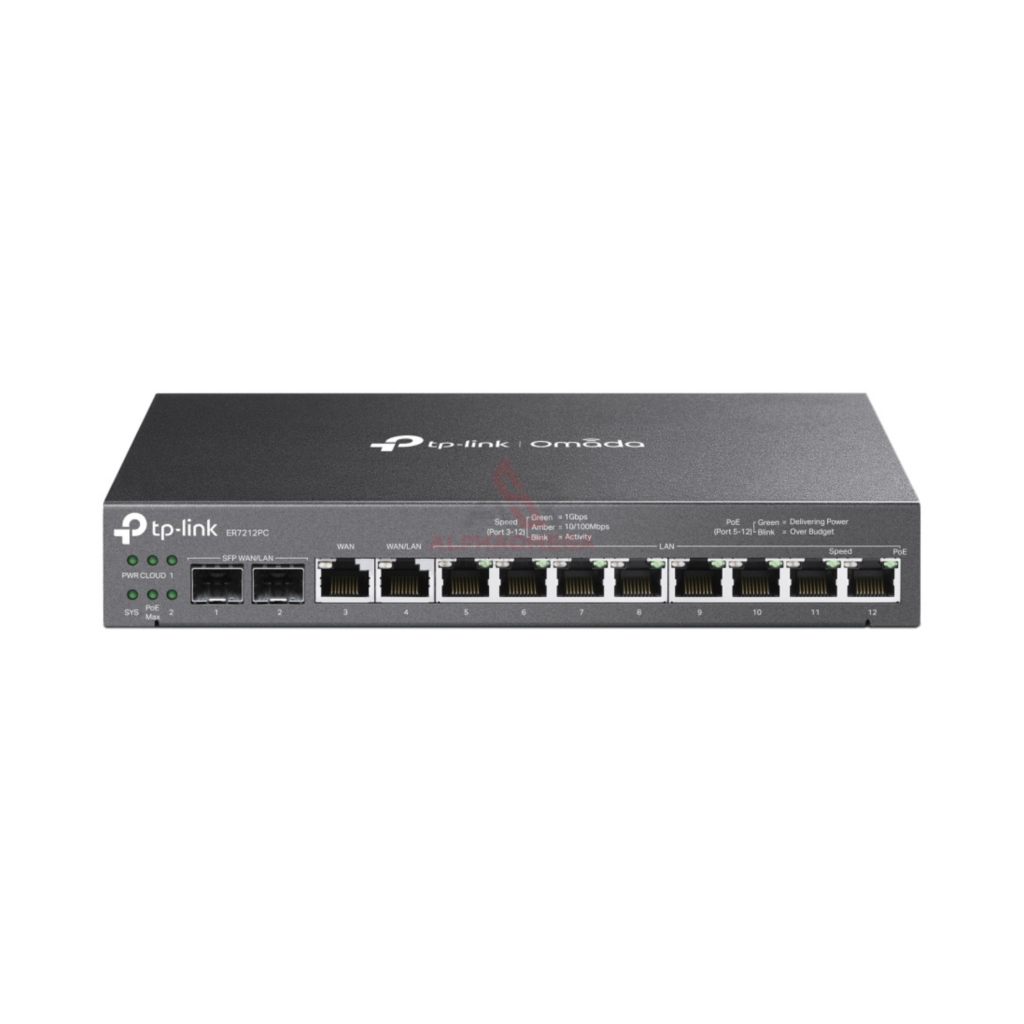

TP-LINK ER7212PC OMADA 3 IN 1 GIGABIT VPN ROUTER

Name: TP-LINK ER7212PC OMADA 3 IN 1 GIGABIT VPN ROUTER
Brand: TP-LINK
SKU: 7775
Availability: InStock

Rp3.275.000 Rp3.930.000 HEMAT 17%

Tersedia (30 unit tersisa)

Garansi Resmi

Gratis Ongkir

Pembayaran Aman

Jumlah

Kategori:Business Solution

FEATURES :

3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether.
Professional Hardware: Dual-Core 1.2 GHz CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
Centralized Management: Cloud access and the Omada app offer convenience and easy management.
Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
Easy Installation: Fanless and compact design for desktop and wall mounting.

SECURITY
DPI	Supported by v2 and above: • Deep Packet Inspection • Support 2421 type Applications • Max Throughput (Upload / Download) 942.7Mbps/937.3Mbps
Access Control	Source/Destination IP Based Access Control/FQDN
Filtering	URL Categoroies and URLs Filtering
ARP Inspection	• Sending GARP Packets • IP-MAC Binding • ARP Detection
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES
Standards and Protocols	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE • 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, SNMP
Interface	• 2 Gigabit SFP WAN/LAN ports^** • 1 Gigabit WAN port • 1 Gigabit LAN/WAN port • 8 Gigabit LAN ports
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) • EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) • EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity	Fanless
Button	Reset Button
Power Supply	53.5VDC/2.43A Adapter
PoE Budget	8 ports PoE+ output, 110 W PoE Budget
Flash	32Mbit Nor+8GB eMMC
DRAM	2 GB DDR4
LED	PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection	6kV surge protection
Enclosure	Steel
Mounting	• Desktop • Wall-mount • Rack-mount (rackmount kit sold separately)
Max. Power Consumption	131 W (110 V/60 Hz) (With 110 W PD connected)

PERFORMANCE
Concurrent Session	50,000
New Sessions /Second	3,800
NAT (Static IP)	940.2 Mbps / 947.5 Mbps
NAT(DHCP)	947.8 Mbps / 948.6 Mbps
NAT(PPPoE)	943.1 Mbps / 942.6 Mbps
NAT (L2TP)	898.4 Mbps / 915.8 Mbps
NAT (PPTP)	909.7 Mbps / 912.8 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 984.7 Mbps, ESP-SHA2-AES256: 990.5 Mbps, • ESP-SHA384-AES256: 983.9 Mbps, ESP-SHA512-AES256: 985.8 Mbps
OpenVPN	233.1 Mbps
L2TP VPN Throughput	• Unencrypted: 1,273.9 Mbps • Encrypted: 851.8 Mbps
PPTP VPN Throughput	• Unencrypted: 1293.5 Mbps • Encrypted: 297.1 Mbps
66 Byte Packet Forwarding Rate	1,453,459 pps / 1,453,459 pps
1,518 Byte Packet forwarding rate	81,272 pps / 81,272 pps

BASIC FUNCTIONS
WAN Connection Type	• Static IP • Dynamic IP • PPPoE • PPTP • L2TP
MAC Clone	Modify WAN MAC Address
DHCP	• DHCP Server • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Access Control	• Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL
Advanced Routing	• Static Routing • Policy Routing
Bandwidth Control	IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup • Online Detection
NAT	• Multi-Net NAT • One-to-One NAT • Port Forwarding • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT
Session Limit	IP-based Session Limit

VPN
SD-WAN	√ (Only in Controller Mode)
SSL VPN	80 Tunnels
IPsec VPN	• 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10) • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10) • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (10) • 16 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	√

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password • Hotspot (Local User / Voucher/ SMS / Radius) • External Radius Sever • External Portal Sever

Management Features
Omada App	Yes.
Centralized Management	Management of up to 22 Omada devices（2 gateway，20 switches and EAPs in total）
Cloud Access	Yes.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize • Port Mirroring • Syslog Support
Zero-Touch Provisioning	-
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Content	• ER7212PC • Power Adapter • Power Cord • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: -5 °C to 45 °C • Storage Temperature: -40 °C to 70 °C • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

BARANG ORI & GARANSI RESMI (TIDAK CACAT FISIK / TERBAKAR) GARANSI HANYA UNIT ONLY
