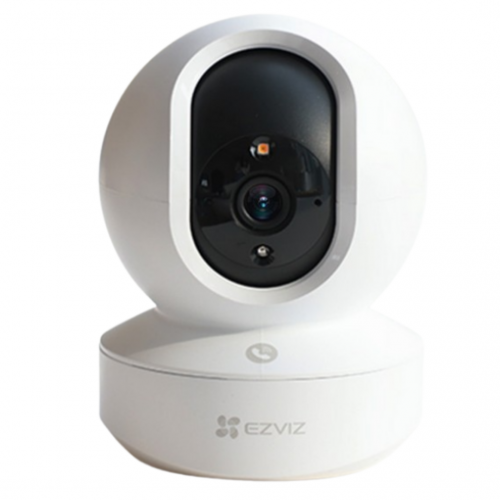

EZVIZ TY1 PRO 4MP 2K+ SMART HOME WI-FI PAN & TILT IP CAMERA CCTV INDOOR

Model: CS-TY1-R105-1J4WF

Resolution: 4MP /2K⁺ Resolution

Image sensor: F1.6@1/3" Progressive Scan CMOS

Shutter Speed: Self-adaptive shutter

Lens: 4mm

Lens Mount: M12

Day & Night: IR-cut filter with auto switch

DNR: 3D DNR

WDR: Digital WDR

Video Compression: H.264/H.265

Video Bit Rate: Adaptive bit rate

Max. Resolution: 2560 × 1440

Frame Rate: Max:30fps; Self-Adaptive during network transmission

Smart Alarm: Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection

Wi-Fi Pairing: AP paring

Protocol: EZVIZ cloud proprietary protocol

Interface Protocol: EZVIZ cloud proprietary protocol

Storage: Micro SD card slot (Max. 512G)

Power: TYPE-C

Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n,

Frequency Range: 2.4G: 2400~2483.5MHz 5G: 5150MHz-5250MHz

Channel Bandwidth: Supports 20MHz

Security: WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate: 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11a 54Mbps, 11nHT20 MCS7

Output Power(EIRP): 19 dBm

Antenna Gain: 1.9 dBi1

Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)

Power Supply: DC 5V/2A

Power Consumption: MAX. 8W

IR Range: MAX. 10 meters(32.81ft)

Dimensions: 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)

Packaging Dimensions: 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)

Bare Weight: 218g / 7oz

In the box

- TY1 Pro 2K⁺ Camera

- Power Adapter

- Power Cable

- Drill Template

- Mounting Plate

- Screw Kit

- Regulatory Information

- Quick Start Guide
